Our Gas Manifolds System have been Approved by World leaders in Gas Industry.

Some of them are M/s. Linde india ltd (M/s. BOC India Ltd), M/s. Inox Air Products Ltd, M/s. Praxair India Ltd, M/s. Sicgil Sol India Ltd, M/s. Matheson K Air India Pvt Ltd., etc.

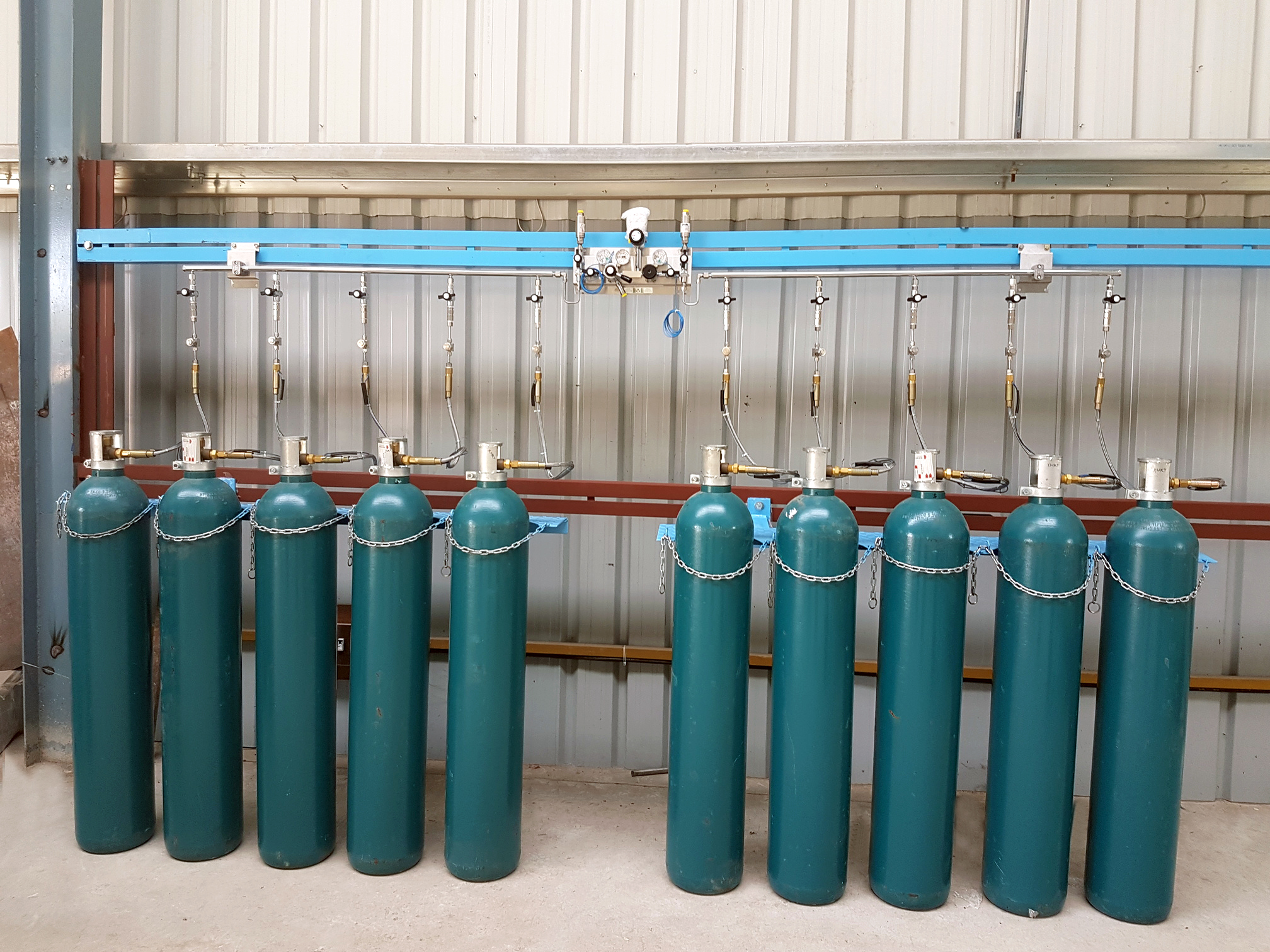

We manufacture Gas Manifolds of various features. Individual header type, Manifolds with manual changes over / Semi Automatic / Automatic change over facilities with built in safety features.

Third party approval (TUV, SGS, and BVQI) will be provided based on the customer’s requirement.

Highlights for Standard Gas Manifold

  • > Compact design
  • > Tested for strength, function and tightness before shipment
  • > Pre-assembled modules, just bolting and mounting has to be done on-site
  • > Low installation costs
  • > Extendable modules
  • > Equipped with all design-type tested safety devices required



Technical data for gas manifolds

  • > Gas type: Acetylene, Oxygen and high-compressed non-corrosive gases
  • > Inlet pressure: Acetylene 25 bar, other gases 200/300 bar
  • > Working pressure: Acetylene 1.5 bar (special version up to 2.5 bar), other gases up to 60 bar
  • > Nominal flow rate: Acetylene 5 to 150 Nm3/h, Oxygen and high-compressed gases 60 to 320 Nm3/h
  • > Number of cylinders: up to 2x6 cylinders by default
  • > Number of bundle: up to 2x12 bundles (customised)
  • > Work piece: stainless steel mounting plate, cylinder connections with design-type tested non-return valve
  • > Acetylene supply stations include an automatic quick-action shut-off valve in their high-pressure area



Technical data tapping points

  • > Gas type: Acetylene, Oxygen and high-compressed, Inert Gases, non-corrosive gases
  • > Inlet pressure: Acetylene 1.5 bar (2.5 bar), other gases up to 60 bar
  • > Flow rate: inert gas 0-30 l/min gauge, 0-14 l/min or 0-40 l/min flow meter, Acetylene up to 15 Nm3/h, Propane up to 10 Nm3/h, Oxygen up to 200 Nm3/h.
  • > Assembly: connection piece, ball valve, brazing- or welding nipple and swivel nut as required.

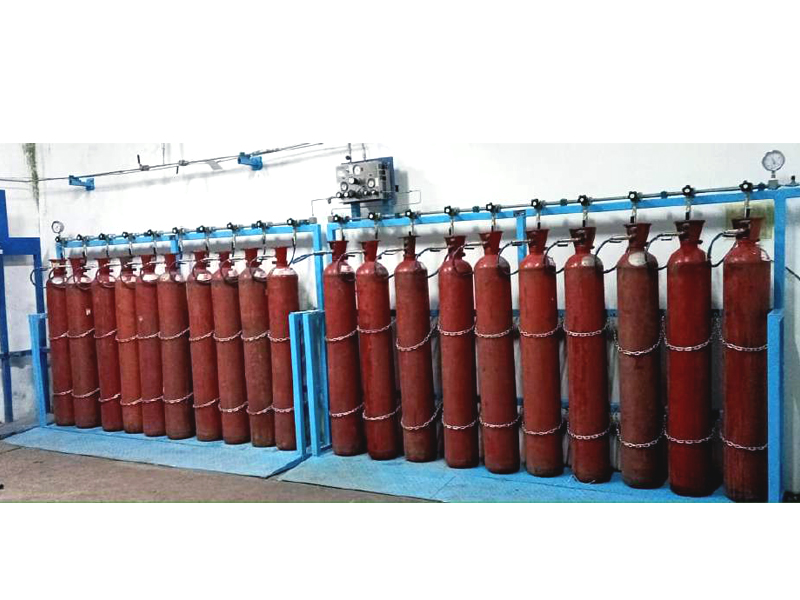

Highlights for Manifold with Auto Changeover System

  • > Modular system
  • > Modules mounted on a plate
  • > Tested for strength, function and tightness before shipment
  • > Equipped with all design-type tested safety devices required



Technical data gas manifold systems

  • > Gas type: Acetylene, Oxygen and high-compressed, Inert Gases, non-corrosive gases
  • > Inlet pressure: Acetylene 25 bar, other gases up to 300 bar
  • > Working pressure Acetylene: 0.6 to 1.5 bar (mechanical switch-over) or 0.6 to 1.35 bar (electronic switch-over).
  • > Other gases: mechanical and pneumatic change-over 10 or 20 bar (pre-set), electronic change-over adjustable from 2 to 16 bar
  • > Flow rate: Acetylene 5 to 150 Nm3/h, Oxygen and high-compressed gases 60 to 320 Nm3/h
  • > Number of cylinders: up to 2 x 1 to 25 cylinders ( customised)
  • > Bundles: Up to 2 x 12 bundles
  • > Assembly: Mounting plate stainless steel or plastic coated steel. optical and acoustic alarm. Design-type tested non-return valves with all cylinder- and bundle-connections.
